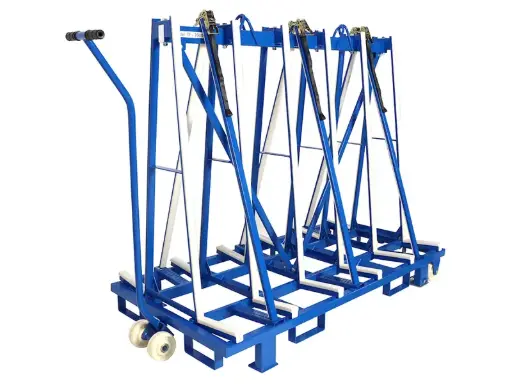

Transport Frames - TF2000

General

The Transport Frames are a heavy-duty frame to transport granite, marble, engineered stone, glass and natural stone countertops. Designed for both storage and transport, it features a powder-coated steel structure (optional galvanised finish), locking bars with ratchet straps and integrated forklift receivers for secure and efficient handling. With rubber-coated supports to prevent surface damage and adjustable support legs for stability, these transport frames are essential for stone fabricators, suppliers and contractors.

Features

Heavy-Duty Steel Frame: Powder-coated for durability, with an optional galvanised finish.
Secure Locking System: Locking bars and ratchet straps hold slabs firmly in place.
Rubber-Coated Supports: Prevents scratches and surface damage.
Forklift-Compatible Design: Built-in receivers for easy lifting and transport.
Adjustable Support Legs: Improves stability during truck transport.
Large Counter-Lever with Wheels: Allows manual movement when forklifts are unavailable.
High Load Capacity: Supports up to 2500kg (5511lb) for heavy slabs.

Option: The frames can be hot galvanised and finished upon request.

Note: Support legs should always be lowered when a loaded frame is being transported on a truck.

Specifications

Transport Frame TF2000

	Metric
Number of wheels	4 pc
Straps with each side	6 pc
Width of slab storage base area on each side	268 mm
Length	2000 mm
Working load limit per side	1250 kg
Total working load limit	2500 kg
Net weight of the total frame	182 kg
Net weight of caster handle	8.7 kg
Net weight of the frame without caster handle	173.3 kg
Gross weight	188 kg
Packaging dimension	L.2000 x W.1020 x H.420 mm
