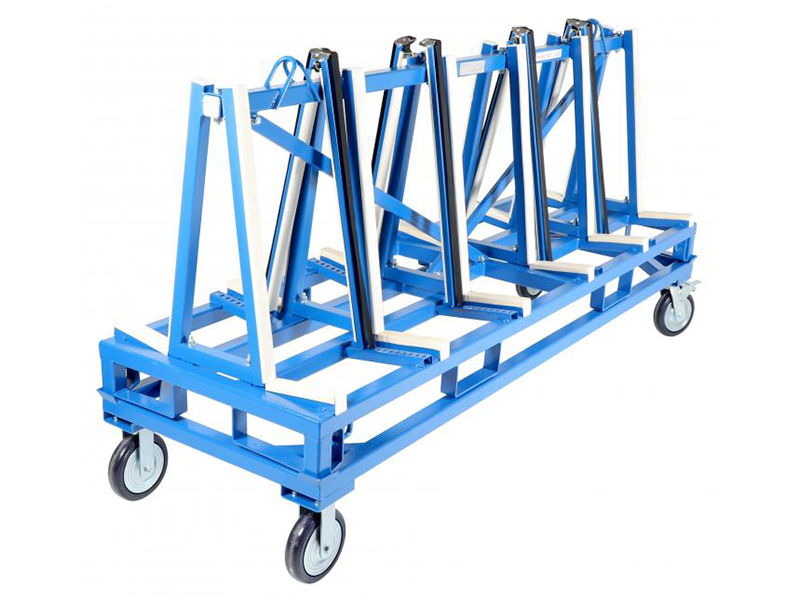

Demountable Frame DAF2350

SKU: DAF2350

  • Weight Load Limit
  • Length
  • Width
  • Height
  • Product Weight
  • Feature

This combination does not exist.

QUANTITY

Log In to see price


Product code: DAF2350

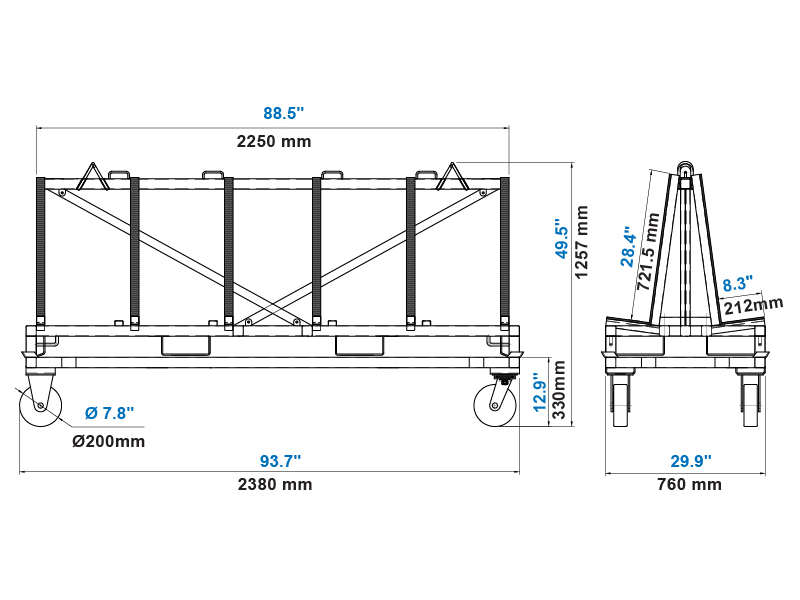

Specifications Demountable Frame DAF2350

Weight Load Limit 1,500 kg | 3,307 lbs
Length 2380 mm | 93.7"
Width 760 mm | 29.9"
Height 1257 mm | 49.4"
Product Weight 170.5 kg | 376 lbs
Feature Double Sided

General

It is ideal for transporting and storing material within the factory or transporting material to building sites.  Rubber is provided on frame surfaces for maximum protection.  Heavy-duty wheels allow easy maneuvering of your fully loaded cart in the workshop and on the construction site.  Fits inside a standard pick-up truck.  Frames can be safely placed on your truck with a forklift or crane.

Features

  • Sturdy structure is designed to eliminate any risk of the slab tipping over.

  • Slabs are placed on unique rubber profiles and secured with eight adjustable locking bars.

  • Eight locking bars per frame are mounted in slotted holes on the bottom.

  • The frame features two hooking points to be picked up by an overhead crane.

  • Built-in brackets on all underneath sides for forklift transport.

  • Powder-coat paint finish.

Specifications


Metric
Imperial
Width of slab storage base area on each side212 mm8.3"
Working load limit per side750 kg1653 lb
Total working load limit1500 kg3307 lb
Net weight177.5 kg391 lb
Gross weight178 kg392 lb
Packaging dimensionL.2390xW.800xH.280 mmL.94"xW.31.5"xH.11"
