Barrier Lifters

Dispozitive de ridicare bariere - ABL255-2000

Introduction

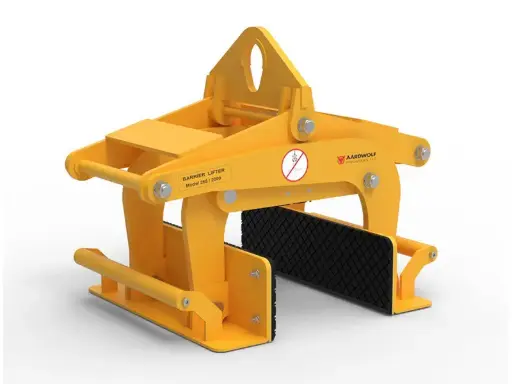

The Concrete Barrier Lifter is a specialized solution for lifting and transporting concrete barriers, and it is also suitable for handling sandstone blocks under various working conditions.

The device operates with a gravity-controlled automatic mechanism: when lowered, the clamp jaws open to position properly; when lifted, the system tightens automatically and keeps the load stable without manual locking. The clamping surfaces are covered with vulcanized rubber, providing better grip and minimizing scratches or chipping during transport.

General Features

Automatic clamp – lock – release by gravity: simple operation, fast handling, reduced reliance on manual actions.
Vulcanized rubber pads: increase friction and protect concrete and stone surfaces during lifting.
Rubber-lined protective bar: reduces direct impact on the material and lowers the risk of edge damage during handling.
Flexible applications: suitable for warehouses, precast yards, concrete handling areas, road/infrastructure job sites, and stone workshops.

Key Advantages

Safer operation: the self-locking mechanism keeps the load secure and reduces the risk of slipping or dropping.
Improved productivity: faster handling with reduced loading/unloading time for heavy materials.
Material protection: rubber lining helps prevent surface scratches and minimizes edge/corner chipping.
Easy and accurate placement: guide legs support alignment and improve installation accuracy.
Durable for industrial environments: strong construction designed for heavy-duty use on job sites.

Specificații

Lifter barieră ABL255-2000

	Valoare
Gama de prindere	100 - 255 mm
Limita sarcinii de lucru	2000 kg
Greutate netă	84 kg
Greutate brută	90 kg
Dimensiunile ambalajului	L.700 x l.500 x H.660 mm

Dispozitive de ridicare bariere

Urmărește videoclipul nostru complet de demonstrație a produsului care arată cum se utilizează. Dispozitive de ridicare bariere. Află despre caracteristicile cheie, beneficiile și instrucțiunile de configurare.

Urmărește tutorialul complet pe YouTube
